Geotechnical study

A geotechnical study identifies the characteristics of the soil on which a structure is to be built, in order to ensure its stability, durability, and safety. It is a key step in reducing technical and financial risks related to soil behavior. At GEOCONSEIL, we conduct geotechnical studies in accordance with the NF P 94-500 standard, across all project phases (G1 to G5), based on field investigations, in-situ testing, and laboratory analysis.

FOR WHICH PROJECTS?

Our studies cover all types of projects:

  • Buildings, single-family homes, industrial buildings
  • Roads, bridges, tunnels, dykes, dams
  • Logistics platforms, business parks
  • Hydraulic structures and linear infrastructures
01. WHY IS A GEOTECHNICAL STUDY ESSENTIAL?
A geotechnical study identifies the characteristics of the soil on which a structure is to be built, in order to ensure its stability, durability, and safety. It is a key step in reducing technical and financial risks related to soil behavior.
At GEOCONSEIL, we conduct geotechnical studies in accordance with the NF P 94-500 standard, across all project phases (G1 to G5), based on field investigations, in-situ testing, and laboratory analysis.
ed 1
02. DESIGN AND EXECUTION GEOTECHNICAL STUDIES
  • Soil investigations for shallow and deep foundations

  • Assessment of bearing capacity, settlements, compaction

  • Determination of optimal foundation type and depth

  • Design studies for retaining structures


ed 2
03. SLOPE AND EMBANKMENT STABILITY
  • Analysis of landslide or rockfall risks

  • Study of natural or filled ground profiles

  • Stability modeling and proposal of reinforcement solutions


ed 2
04. GEOTECHNICAL MONITORING DURING CONSTRUCTION
  • Quality control of excavated or filled soils

  • Validation of foundation conditions in open excavations

  • Compaction tests, plate load tests, in-situ density

  • Geotechnical assistance in case of unexpected soil discovery


service5
05. REHABILITATION AND POST-DAMAGE DIAGNOSIS
  • Geotechnical investigations following cracks, differential settlements, collapses

  • Proposal of underpinning or soil stabilization solutions

  • Expert assessments for insurance claims


service5
06. GEOCONSEIL METHODOLOGY
  • Analysis of client needs

  • Definition of a site-adapted investigation program

  • Execution of boreholes and in-situ tests/li>
  • Analysis and modeling of results

  • Drafting of the geotechnical report with technical recommendations

  • On-site assistance during construction if required


ed6

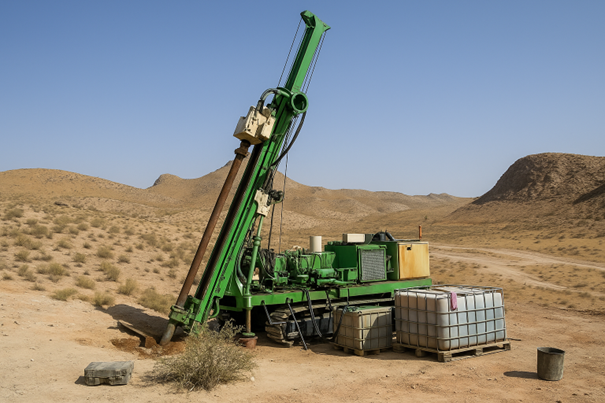

07. IN SITU SURVEY & TESTING

  • Core sampling and destructive testing

  • Pressuremeter testing (Ménard)

  • Dynamic penetrometer testing (DPSH, DPH)

  • Static penetrometer testing (CPT, CPTu)

  • Scissometer testing, dilatometer testing

  • Permeability testing (Lefranc, Lugeon)

  • Well drilling and piezometer installation



ed 7
